Note: This has multiple options, each representing a different model of camera.

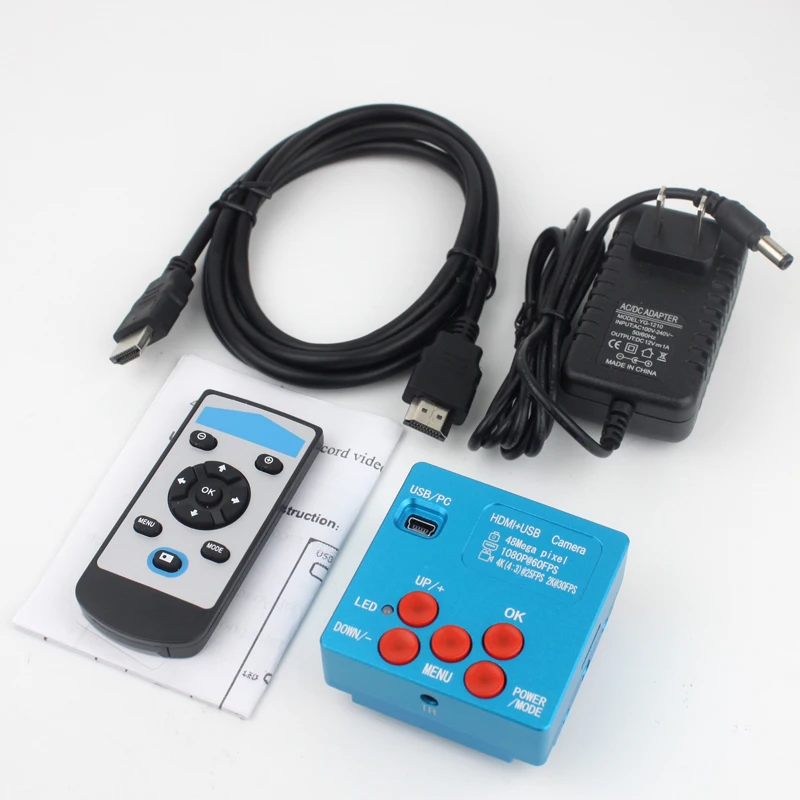

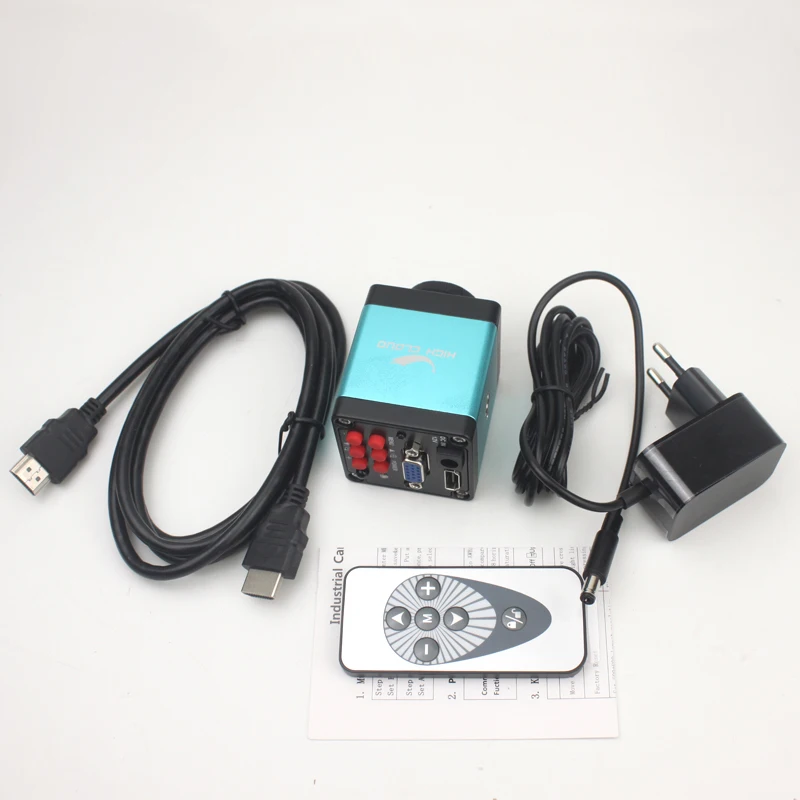

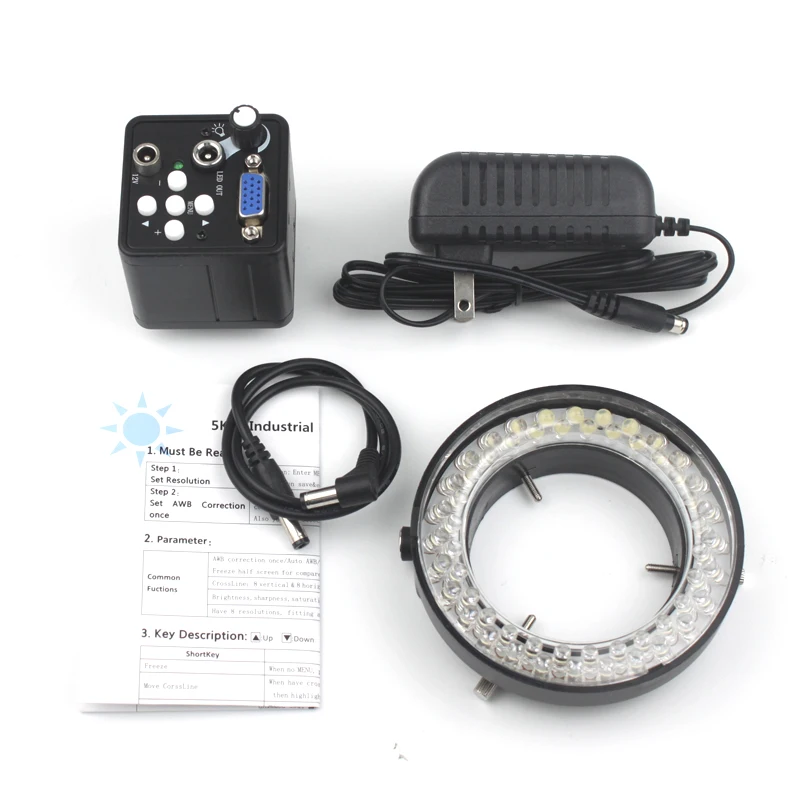

Package Including:
Package Including:
(Optional)
1 x Microscope Camera
1 x 12V Power Adapter
1 x HDMI Cable
1 x IR Remote Control
Picture Pixel: 9885X5560 55M Pixel 9280X5220 48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY 1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃
48MP 2K 4K TF HDMI USB Features:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A
48MP 2K TF HDMI USB
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:48MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
4K 48MP HDMI Type-c Function:
Adopt Imported Sony sensor;
Adopt 1/2.8 inch image sensor;
HDMI 1080P 60 frame image output;
TYPE-C driver-free output 1080P 30/Fps image output;
HDMI port 4K, 1080P video recording, 48MP Pictures were taken;
48MP photos, JPG format, photo size 8000×6000;
One-key freeze/thaw function;
Electronic zoom function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G, adjustable;
Provide 16 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Support TF card storage, up to 64GB;
Support remote control operation, take pictures without shaking and the image will be clearer;
Support Chinese and English menu languages;
Support shutdown setting parameter saving;
Aluminum alloy casing processed by CNC precision milling technology;
Sensor: 1/2.8 Sony sensor
Pixel size: 2.9μm × 2.9μm
HDMI output: 1920*1080 60 frames
Type-C HDMI Feature:
Sensor type:1/2.8″ Sony Color CMOS
Effective pixels:1920H*1080V
Data bits: 16bit
Pixel size:2.9μm*2.9μm
Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)
Definition:The maximum definition is above 1000TV lines
Scanning method:Progressive
Shutter Type:Electronic Shutter
Dynamic range:>90dB
Signal-to-noise ratio:55dB
Sensitivity:2.0 V/lux-sec (550nm)
Exposure mode:manual/automatic
White balance:automatic/manual
Lens interface:C/CS
Video interface:GA, HDMI and Type-C UVC synchronous output
Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)
Power supply:Type-C power supply, DC 5-12V/1A
Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!
Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.
2. Scale bar, center cursor, center line
