Novatek 96663 Processor
Based on powerful Novatek 96663 CPU, the dual lens simultaneously capture
front and inside at 1080P 30P+1080P 30P/720P 30P+720P 30P.
Or utilize the front camera only to record front at 4K 2160P 24P/1440P 30P/1080P 60P/1080P 30P/720P 60P/720P 30P.

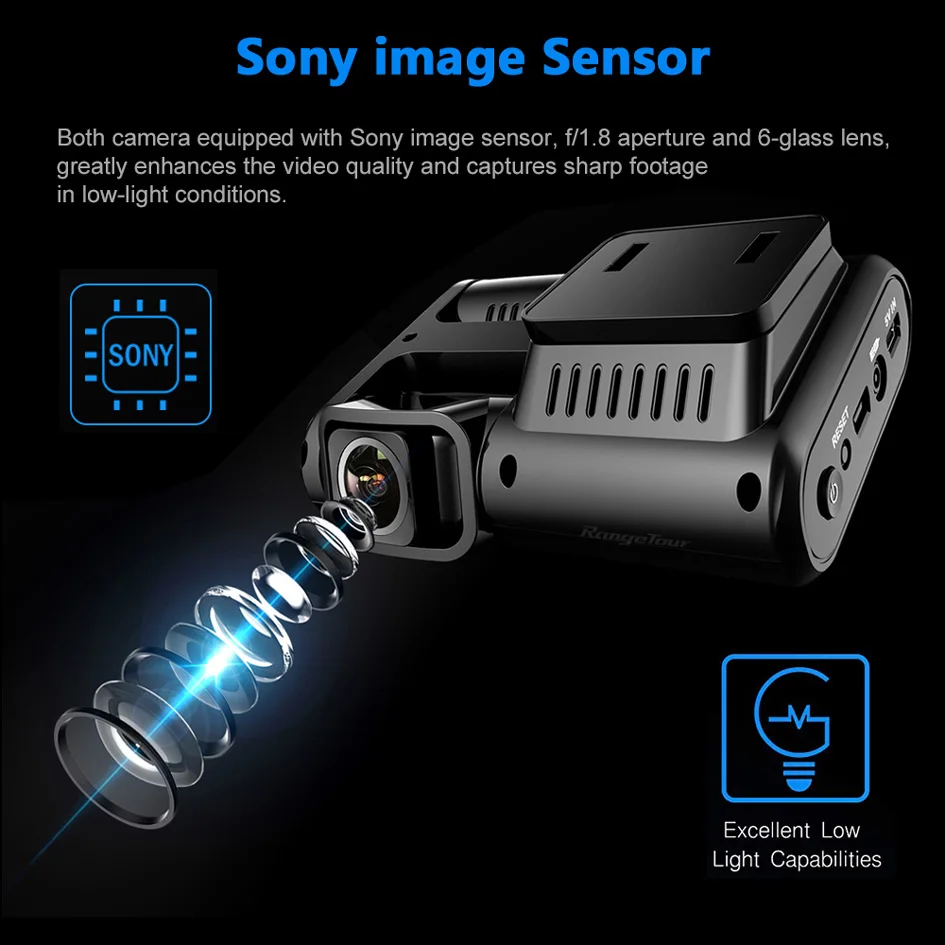

Dual SONY IMX323 Sensor
Both camera equipped with Sony image sensor, f/1.8 aperture and 6-glass lens, greatly enhances the video quality and captures sharp footage in low-light conditions.
Dual Rotatable Lens
Signature low-profile design allows the dash cam to be a well-hidden witness to the road ahead. Both cameras can be rotated 180 degrees forward and backward, 50 degrees left and right.
Built-in WiFi
Download the “Roadcam” app and connect the D30H Dash Cam via WiFi to viewing real-time footage or videos, downloading videos to your phone easily and sharing your trip with friends. Also can get instant control of your dash cam setting.
Built-in GPS
Built-in GPS accurately logs your vehicles location, speed, latitude, longitude and route. And can be view on Google Map by “Roadcam” APP, or GPS player in computer.
Dual 170 Degree Wide Angle Lens
Dual 170 degree wide angle lens offers a larger image, captures bigger scene for avoiding missing spot.
Super Night Vision
Super Night Vision, Sony image sensor 1/2.9 inch light-sensitive components, 4 IR lights, f/1.8 aperture and 6-glass lens, can capture clear videos and photos even in low-light night conditions.
WDR Function
WDR technology will automatically compensates for light/dark spots and balances exposure, makes all scene details are recorded vividly.
2 Ways for 24 Hour Parking Monitoring(for Parking, need Hardwire Kit)
1. The dash cam will automatically turn itself on and record 1 minute video then turn off when collision or crash happens while parked;
2. The dash cam supports Time-Lapse Recording function，which can keep recording with extremely low power consumption while engine off.
ADAS(FCWS/LDWS)
LDWS: Lane Departure Warning System
FCWS: Forward Collision Warning System
Seamless Loop Recording & G-Sensor
Footage is stored in loops of 1/3 minute segments according to your setting. Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card to capacity. G-Sensor will lock footage in the event of an accident, the locked fragments will not be overwritten.
Super Capacitor (No Battery)
Built-in Super Capacitor. Prevent explosion, the camera can operate smoothly in high temperatures. Please always connect the dash cam to car charger while it is in use.
Specifications:
Processor: Novatek 96663 / Novatek 96670
Image Sensor: Dual SONY
Video Resolution: Single Channel: 4K 2160P 24P/1440P 30P/1080P 60P/1080P 30P/720P 60P/720P 30P; Dual Channel:1080P 30P+1080P 30P / 720P 30P+720P 30P
Photo Resolution: 12M/10M/8M/5M/3M/VGA
Aperture Range: inside F1.8 / outside F2.0
Decode Format: H.264
Lens Angle: Dual 170 Degree + 170 Degree
Screen: 2.0 inch TFT LCD
Video format: MP4
Photo format: JPG
WiFi: Yes
GPS: Yes(Optional)
Super Night Vision: Yes
WDR: Yes
ADAS: Yes / No
G-Sensor: Yes
Loop Recording: OFF/1min/3min
Auto Power ON: Yes
Auto Power OFF: 1min/2min/3min/5min/10min
Motion Detection: Yes
Parking Monitoring: Yes
Exposure: -2.0,-5/3,-4/3,-1.0,-2/3,-1/3,+0.0,+1/3,+2/3,+1.0,+4/3,+5/3,+2.0
Picture in Picture: Yes
MIC: Yes
Battery Capacity: Built-in Super Capacitor (No Battery)
Power Interface: 5V 2.0A
GPS Interface: Mini USB
Language: English/Russian/French/Spanish/Portuguese/Germany/Italian/Chinese/Japanese/Korean
Max External Card Supported: TF 256G(not included)
Product size (L*W*H): 10.6*7.3*3.9cm/4.1*2.8*1.5in
Package Included:
1 x Car DVR Recorder
1 x Car Charger

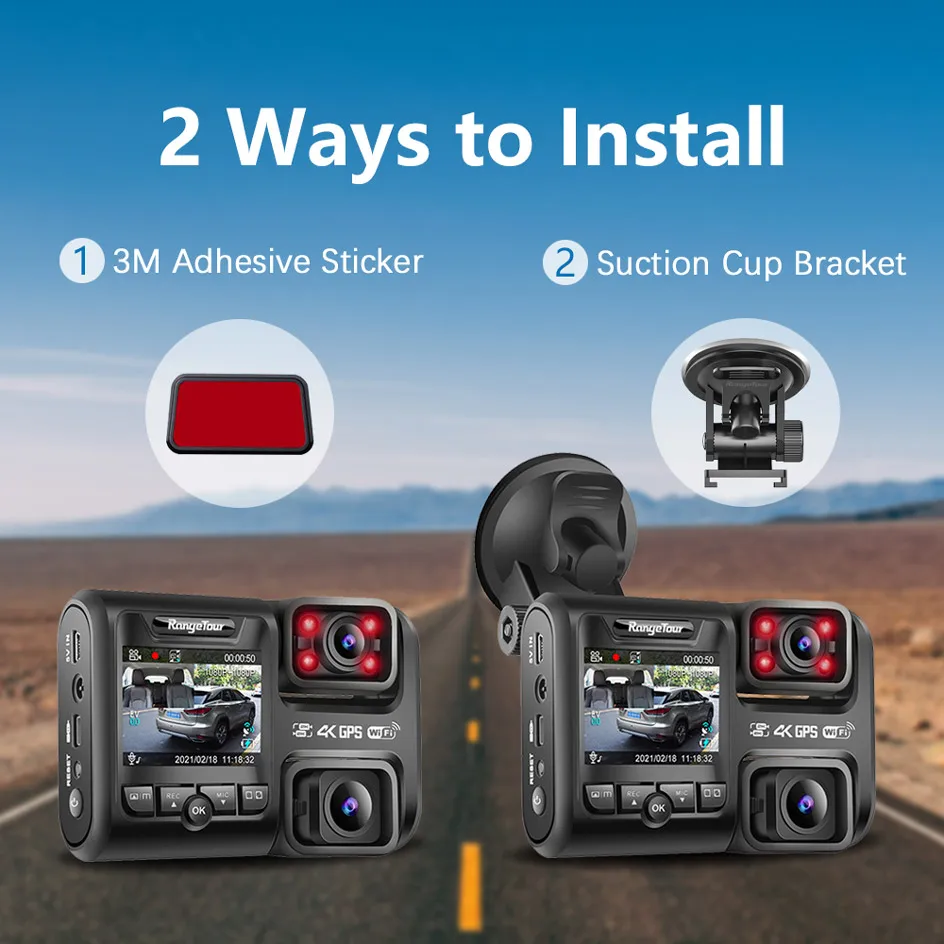

1 x 3M Adhesive Sticker
1 x User Manual
9 x Free Gift
Tips:
– Micro SD card required: Requires class10 card or above. We recommend use our micro SD card which is custom made for Car DVR. Please format the micro SD card on your dash cam before you can use it. You can find the format option on the menu.
– No built-in battery, replaced by super capacitor. Please always connect the dash cam to external power cord while it is in use. This dash cam has the “Auto Power Off” feature. When there is no external power connection, the dash cam will shut down, and time and date setting will be saved.
– Strongly suggest use original car charger.
– Super night vision capabilities to capture clear image in low-light conditions(except no light condition).
The inside camera uses special lens that can sense the infrared light, the lens will sense the infrared light from the sunlight during daytime, so the video will be partial pink. This inside camera performs optimally even in no light situations, but video will be black and white.
